Getting Started with BigQuery ML - GSP247

Getting Started with BigQuery ML - GSP247

Overview

BigQuery ML enables users to create and execute machine learning models in BigQuery using SQL queries. The goal is to democratise machine learning by enabling SQL practitioners to build models using their existing tools and to increase development speed by eliminating the need for data movement.

There is an available ecommerce dataset that has millions of Google Analytics records for the Google Merchandise Store loaded into BigQuery. In this lab, you use this data to create a model that predicts whether a visitor will make a transaction.

What you'll learn

In this lab, you learn how to:

  • Create BigQuery datasets

  • Create, evaluate, and use machine learning models in BigQuery

Prerequisite

To maximize your learning you should have a basic knowledge of SQL or BigQuery.

Setup and requirements

Before you click the Start Lab button

Read these instructions. Labs are timed and you cannot pause them. The timer, which starts when you click Start Lab, shows how long Google Cloud resources will be made available to you.

This hands-on lab lets you do the lab activities yourself in a real cloud environment, not in a simulation or demo environment. It does so by giving you new, temporary credentials that you use to sign in and access Google Cloud for the duration of the lab.

To complete this lab, you need:

  • Access to a standard internet browser (Chrome browser recommended).

Note: Use an Incognito or private browser window to run this lab. This prevents any conflicts between your personal account and the Student account, which may cause extra charges incurred to your personal account.

  • Time to complete the lab---remember, once you start, you cannot pause a lab.

Note: If you already have your own personal Google Cloud account or project, do not use it for this lab to avoid extra charges to your account.

How to start your lab and sign in to the Google Cloud console

  1. Click the Start Lab button. If you need to pay for the lab, a pop-up opens for you to select your payment method. On the left is the Lab Details panel with the following:

    • The Open Google Cloud console button

    • Time remaining

    • The temporary credentials that you must use for this lab

    • Other information, if needed, to step through this lab

  2. Click Open Google Cloud console (or right-click and select Open Link in Incognito Window if you are running the Chrome browser).

    The lab spins up resources, and then opens another tab that shows the Sign in page.

    Tip: Arrange the tabs in separate windows, side-by-side.

    Note: If you see the Choose an account dialog, click Use Another Account.

  3. If necessary, copy the Username below and paste it into the Sign in dialog.

     student-04-6e98757e7748@qwiklabs.net


    You can also find the Username in the Lab Details panel.

  4. Click Next.

  5. Copy the Password below and paste it into the Welcome dialog.

     Fova40lrETvv


    You can also find the Password in the Lab Details panel.

  6. Click Next.

    Important: You must use the credentials the lab provides you. Do not use your Google Cloud account credentials.

    Note: Using your own Google Cloud account for this lab may incur extra charges.

  7. Click through the subsequent pages:

    • Accept the terms and conditions.

    • Do not add recovery options or two-factor authentication (because this is a temporary account).

    • Do not sign up for free trials.

After a few moments, the Google Cloud console opens in this tab.

Note: To view a menu with a list of Google Cloud products and services, click the Navigation menu at the top-left.

Navigation menu icon

Open the BigQuery console

  1. In the Google Cloud Console, select Navigation menu > BigQuery.

The Welcome to BigQuery in the Cloud Console message box opens. This message box provides a link to the quickstart guide and the release notes.

  1. Click Done.

The BigQuery console opens.

Task 1. Create a dataset

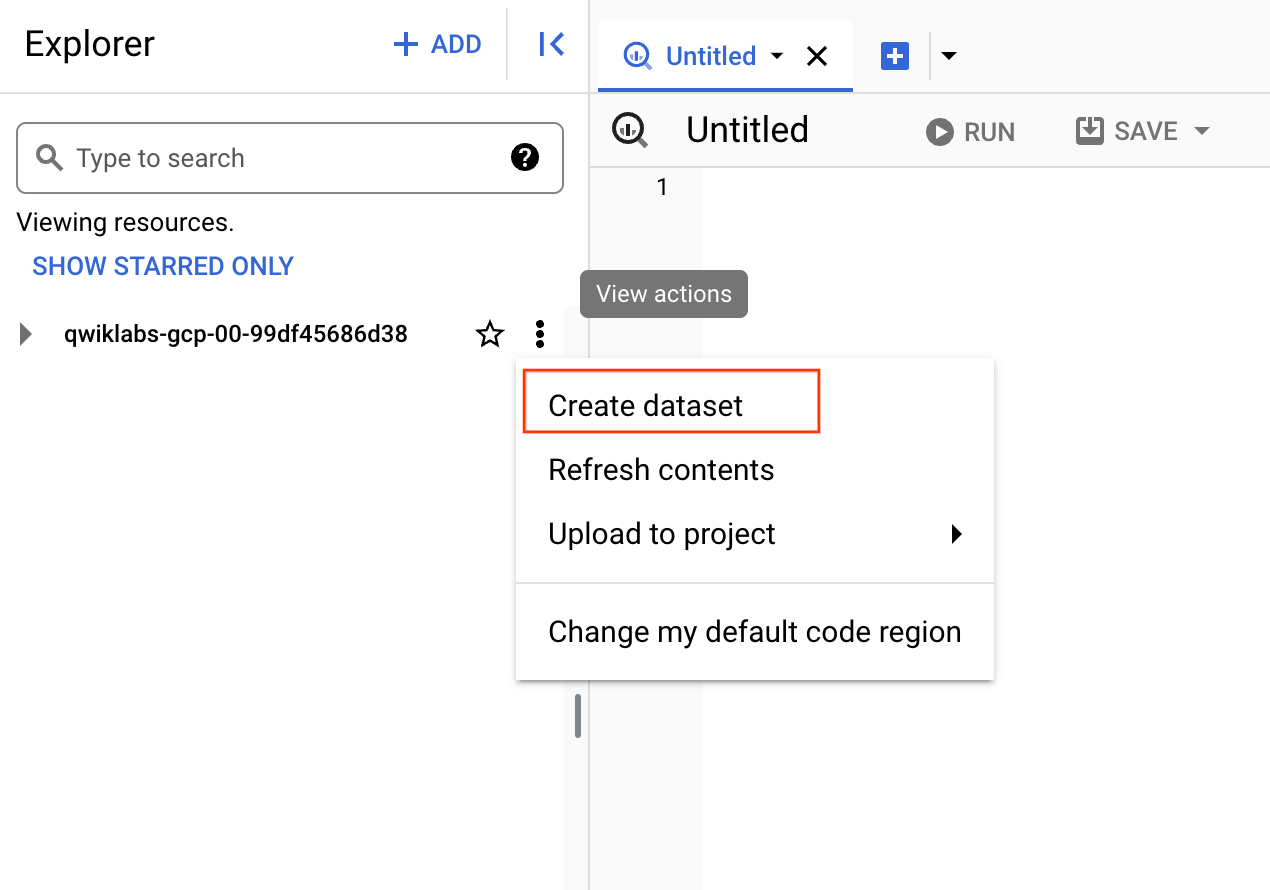

  1. To create a dataset, click on the View actions icon next to your project ID and select Create dataset.

Create dataset option

  1. Next, name your Dataset ID bqml_lab and click Create dataset.

Test completed task

Click Check my progress to verify your performed task. If you have completed the task successfully you will be granted an assessment score.

Create a BigQuery dataset

Check my progress

Task 2. Create a model

Now, move on to your task!

  1. Go to BigQuery EDITOR, type or paste the following query to create a model that predicts whether a visitor will make a transaction:
#standardSQL
CREATE OR REPLACE MODEL `bqml_lab.sample_model`
OPTIONS(model_type='logistic_reg') AS
SELECT
  IF(totals.transactions IS NULL, 0, 1) AS label,
  IFNULL(device.operatingSystem, "") AS os,
  device.isMobile AS is_mobile,
  IFNULL(geoNetwork.country, "") AS country,
  IFNULL(totals.pageviews, 0) AS pageviews
FROM
  `bigquery-public-data.google_analytics_sample.ga_sessions_*`
WHERE
  _TABLE_SUFFIX BETWEEN '20160801' AND '20170631'
LIMIT 100000;
  1. Click RUN.

Here the visitor's device's operating system is used, whether said device is a mobile device, the visitor's country and the number of page views as the criteria for whether a transaction has been made.

In this case, bqml_lab is the name of the dataset and sample_model is the name of the model. The model type specified is binary logistic regression. In this case, label is what you're trying to fit to.

Note: If you're only interested in 1 column, this is an alternative way to setting input_label_cols.

The training data is being limited to those collected from 1 August 2016 to 30 June 2017. This is done to save the last month of data for "prediction". It is further limited to 100,000 data points to save some time.

Running the CREATE MODEL command creates a Query Job that will run asynchronously so you can, for example, close or refresh the BigQuery UI window.

Test completed task

Click Check my progress to verify your performed task. If you have completed the task successfully you will be granted an assessment score.

Create a model to predict visitor transaction

Check my progress

(Optional) Model information & training statistics

If interested, you can get information about the model by expanding bqml_lab dataset and then clicking the sample_model model in the UI. Under the Details tab you should find some basic model info and training options used to produce the model. Under Training, you should see a table either a table or graphs, depending on your View as settings:

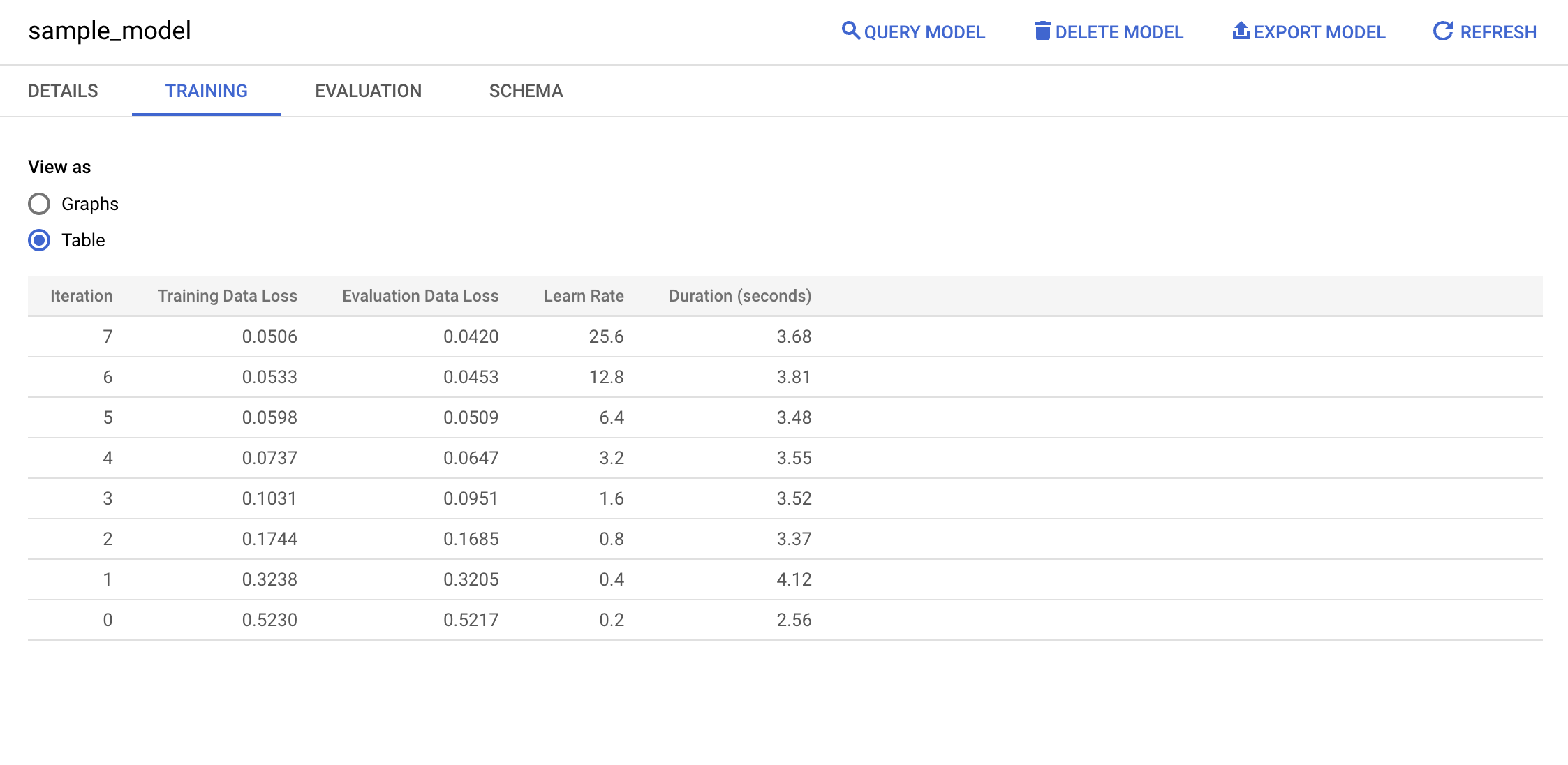

Training table

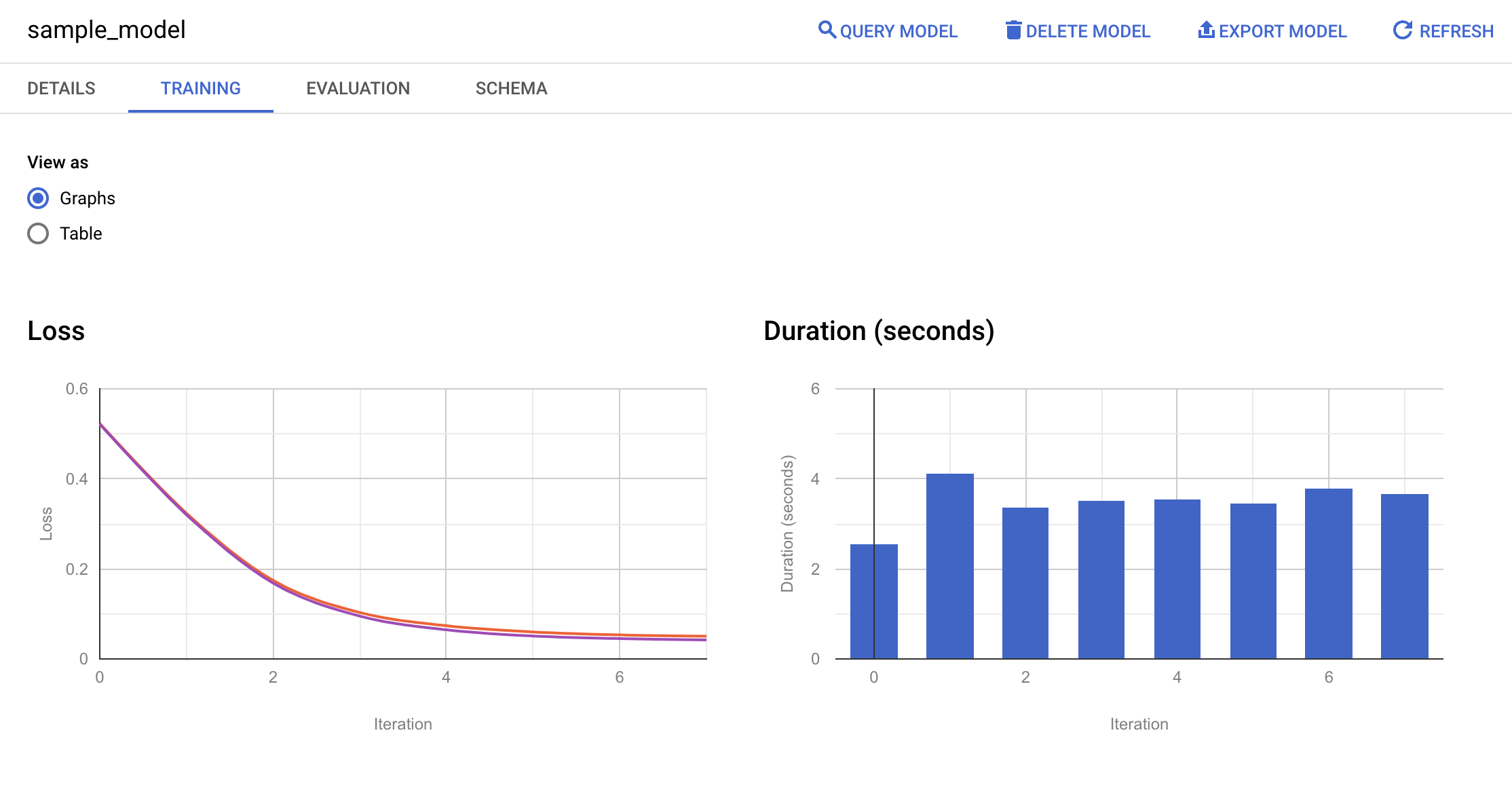

Training graph

Task 3. Evaluate the model

  • Replace the previous query with the following and then click Run:
#standardSQL
SELECT
  *
FROM
  ml.EVALUATE(MODEL `bqml_lab.sample_model`, (
SELECT
  IF(totals.transactions IS NULL, 0, 1) AS label,
  IFNULL(device.operatingSystem, "") AS os,
  device.isMobile AS is_mobile,
  IFNULL(geoNetwork.country, "") AS country,
  IFNULL(totals.pageviews, 0) AS pageviews
FROM
  `bigquery-public-data.google_analytics_sample.ga_sessions_*`
WHERE
  _TABLE_SUFFIX BETWEEN '20170701' AND '20170801'));

If used with a linear regression model, the above query returns the following columns:

  • mean_absolute_error, mean_squared_error, mean_squared_log_error,

  • median_absolute_error, r2_score, explained_variance.

If used with a logistic regression model, the above query returns the following columns:

  • precision, recall

  • accuracy, f1_score

  • log_loss, roc_auc

Please consult the machine learning glossary or run a Google search to understand how each of these metrics are calculated and what they mean.

You'll realize the SELECT and FROM portions of the query are identical to that used during training. The WHERE portion reflects the change in time frame and the FROM portion shows that you're calling ml.EVALUATE.

You should see a table similar to this:

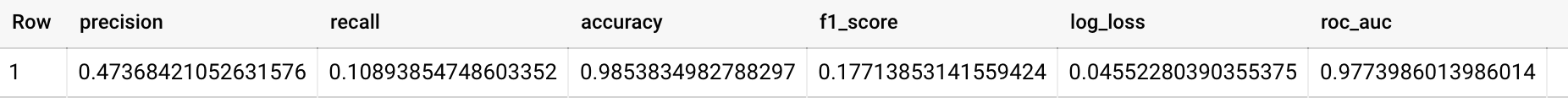

Logistic regression model query results

Test completed task

Click Check my progress to verify your performed task. If you have completed the task successfully you will be granted an assessment score.

Evaluate the Model

Check my progress

Task 4. Use the model

Predict purchases per country

With this query you will try to predict the number of transactions made by visitors of each country, sort the results, and select the top 10 countries by purchases:

  • Replace the previous query with the following and then click Run:
#standardSQL
SELECT
  country,
  SUM(predicted_label) as total_predicted_purchases
FROM
  ml.PREDICT(MODEL `bqml_lab.sample_model`, (
SELECT
  IFNULL(device.operatingSystem, "") AS os,
  device.isMobile AS is_mobile,
  IFNULL(totals.pageviews, 0) AS pageviews,
  IFNULL(geoNetwork.country, "") AS country
FROM
  `bigquery-public-data.google_analytics_sample.ga_sessions_*`
WHERE
  _TABLE_SUFFIX BETWEEN '20170701' AND '20170801'))
GROUP BY country
ORDER BY total_predicted_purchases DESC
LIMIT 10;

This query is very similar to the evaluation query demonstrated in the previous section. Instead of ml.EVALUATE, you're using ml.PREDICT and the BigQuery ML portion of the query is wrapped with standard SQL commands. For this lab you're interested in the country and the sum of purchases for each country, so that's why SELECT, GROUP BY and ORDER BY. LIMIT is used to ensure you only get the top 10 results.

You should see a table similar to this:

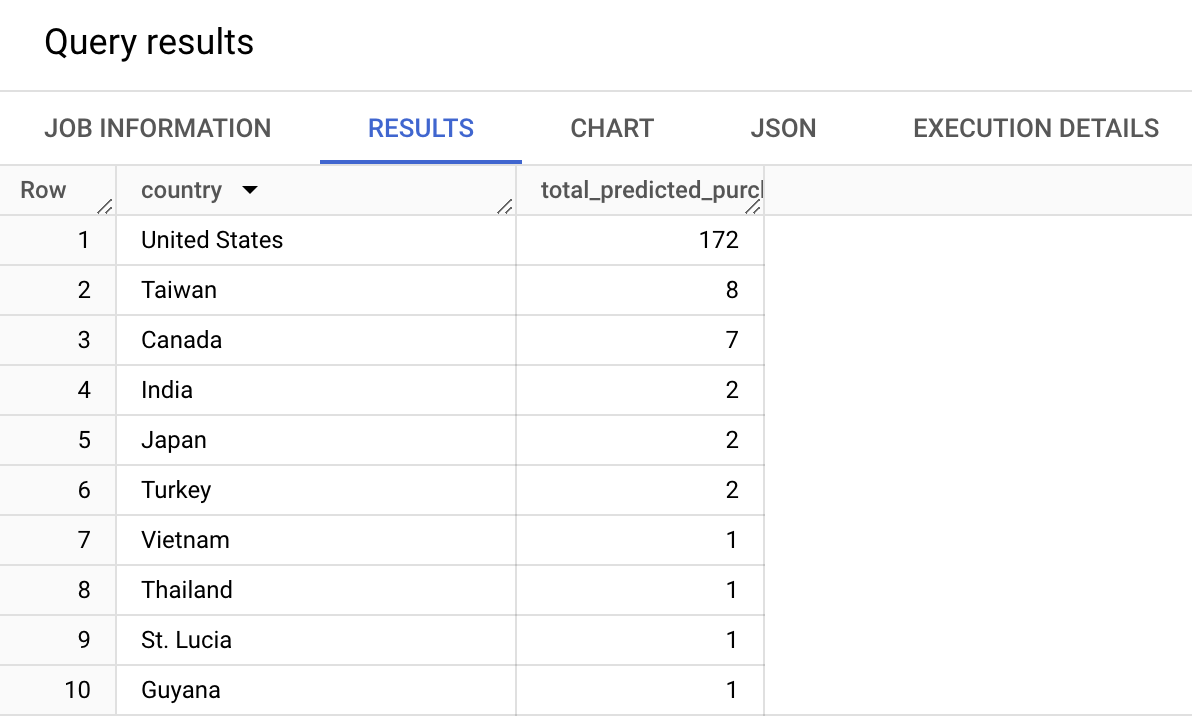

Ten rows of countries with total predicted purchases listed for each country

Test completed task

Click Check my progress to verify your performed task. If you have completed the task successfully you will be granted an assessment score.

Predict purchases per country

Check my progress

Predict purchases per user

Here is another example. This time you will try to predict the number of transactions each visitor makes, sort the results, and select the top 10 visitors by transactions:

  • Replace the previous query with the following and then click Run:
#standardSQL
SELECT
  fullVisitorId,
  SUM(predicted_label) as total_predicted_purchases
FROM
  ml.PREDICT(MODEL `bqml_lab.sample_model`, (
SELECT
  IFNULL(device.operatingSystem, "") AS os,
  device.isMobile AS is_mobile,
  IFNULL(totals.pageviews, 0) AS pageviews,
  IFNULL(geoNetwork.country, "") AS country,
  fullVisitorId
FROM
  `bigquery-public-data.google_analytics_sample.ga_sessions_*`
WHERE
  _TABLE_SUFFIX BETWEEN '20170701' AND '20170801'))
GROUP BY fullVisitorId
ORDER BY total_predicted_purchases DESC
LIMIT 10;

You should see a table similar to this:

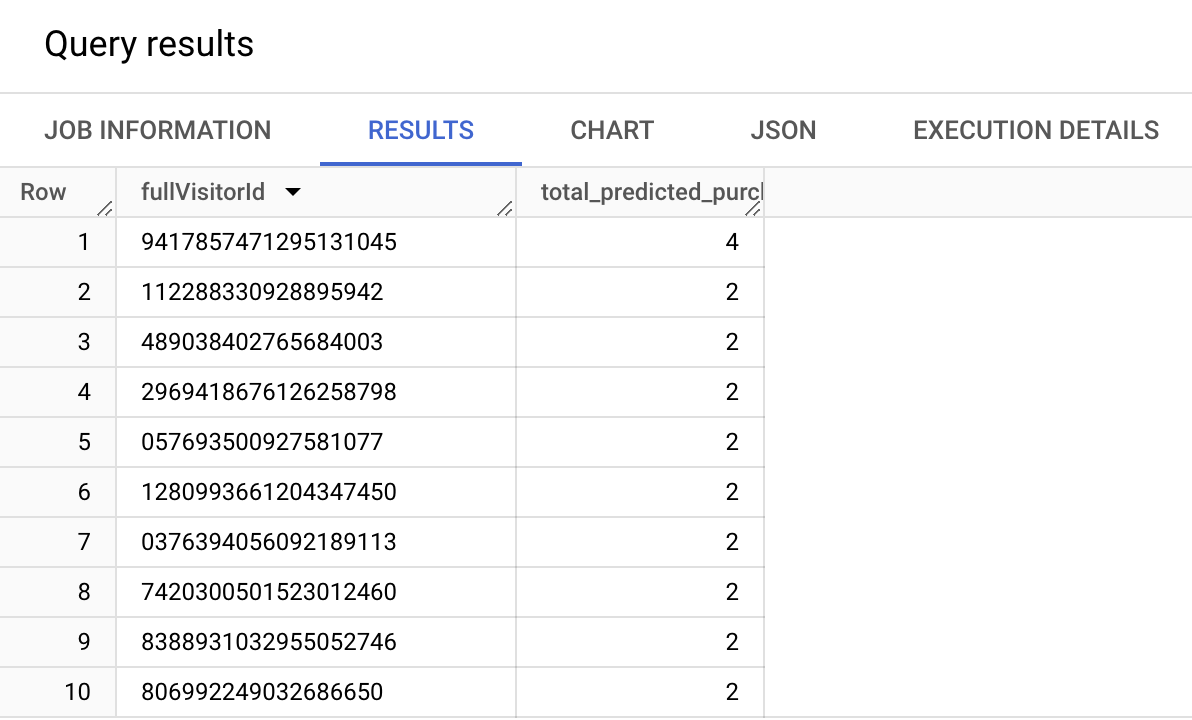

Ten rows of fullVisitorId with total predicted purchases listed for each visitor

Test completed task

Click Check my progress to verify your performed task. If you have completed the task successfully you will be granted an assessment score.

Predict purchases per user

Check my progress

Task 5. Test your understanding

Below are multiple choice questions to reinforce your understanding of this lab's concepts. Answer them to the best of your abilities.

BigQuery is a fully-managed enterprise data warehouse that enables super-fast SQL queries.

  • True

  • False

Which option best describes what BigQuery ML does?

  • Exports data from the warehouse, reformats the data, then executes the model using standard SQL queries.

  • Creates and executes machine learning models in BigQuery using standard SQL queries.

  • Creates machine learning models so you can export and use the model to re-evaluate the accuracy of other models.

  • Creates machine learning models using Python or Java in BigQuery, then executes the model using standard SQL queries.


Solution of Lab

curl -LO raw.githubusercontent.com/quiccklabs/Labs_solutions/master/Getting%20Started%20with%20BigQuery%20Machine%20Learning/quicklabgsp247.sh
sudo chmod +x quicklabgsp247.sh
./quicklabgsp247.sh
