Redacting Sensitive Data with the DLP API (Solution)

Setup and requirements

For each lab, you get a new Google Cloud project and set of resources for a fixed time at no cost.

1. Sign in to Qwiklabs using an incognito window.

2. Note the lab's access time (for example, 1:15:00), and make sure you can finish within that time.
   There is no pause feature. You can restart if needed, but you have to start at the beginning.

3. When ready, click Start lab.

4. Note your lab credentials (Username and Password). You will use them to sign in to the Google Cloud Console.

5. Click Open Google Console.

6. Click Use another account and copy/paste credentials for this lab into the prompts.
   If you use other credentials, you'll receive errors or incur charges.

7. Accept the terms and skip the recovery resource page.

Task 1. Enable the DLP API

In this task, you enable the DLP API through APIs & Services.

1. Go to Navigation menu > APIs & Services.

2. Click the Enable APIs and Services button.

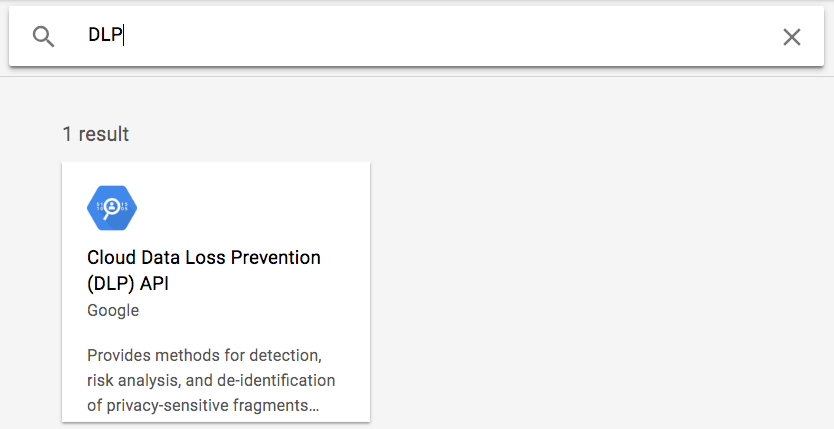

3. In the Search for APIs & Services field, enter DLP and then click on the Cloud Data Loss Prevention (DLP) API title.

4. Click the Enable button to enable the DLP API. If the API is already enabled, you will see a Manage button instead, along with an API enabled message. In that case you do not need to do anything.

Task 2. Install the DLP API and Node JS samples

In this task, you download the Node JS DLP API and samples and install the required dependencies.

1. On the Google Cloud Console tile bar, click Activate Cloud Shell () to open Cloud Shell. When prompted, click Continue. After a moment, in the lower part of the browser window, the Terminal appears.

2. Run the following command to create the GCLOUD_PROJECT environment variable and set it to the project ID:

export GCLOUD_PROJECT=$DEVSHELL_PROJECT_ID

3. Run the following command in Cloud Shell to download the Node JS DLP API and samples:

git clone https://github.com/GoogleCloudPlatform/nodejs-docs-samples

4. Once the download is complete, change into the nodejs-docs-samples/dlp directory:

cd nodejs-docs-samples/dlp

There are several Node JS DLP sample programs in this folder. Before you run them, you need to install the dependencies.

5. Run the following command to install the required dependencies:

npm install @google-cloud/dlp
npm install yargs
npm install mime@2.5.2

Task 3. Inspect and redact sensitive data

In this task, you inspect and mask sensitive information from the string also use the DLP API to redact sensitive data from an image.

Inspect a string for sensitive information

1. In Cloud Shell run the command below. (If prompted, click Authorize.)

node inspectString.js $GCLOUD_PROJECT "My email address is joe@example.com."

You should receive the following output.

Output:

Findings:
        Info type: EMAIL_ADDRESS
        Likelihood: LIKELY

The result shows what sensitive data was found, what type of information it is, and how certain the API is about that info type.

2. In Cloud Shell, run the following command:

node inspectString.js $GCLOUD_PROJECT "My phone number is 555-555-5555."

You should receive the following output.

Output:

Findings:
        Info type: PHONE_NUMBER
        Likelihood: VERY_LIKELY

3. Feel free to experiment with different input to the inspectString.js program. For example, try passing in values like 1234-5678-9876-5432 or 123-45-6789.

Mask sensitive information from a string

• In Cloud Shell, run the following command:

node deidentifyWithMask.js $GCLOUD_PROJECT "My phone number is 555-555-5555."

You should receive the following output.

Output:

My phone number is ************.

Redact sensitive data from images

You will now use the DLP API to redact sensitive data from an image.

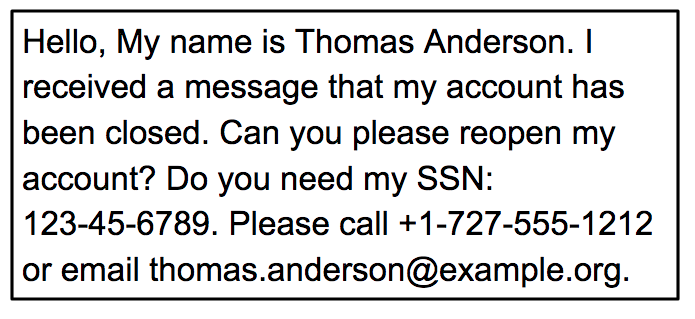

1. Right-click on the image below and select Save image as. Save it locally on your computer as dlp-input.png.

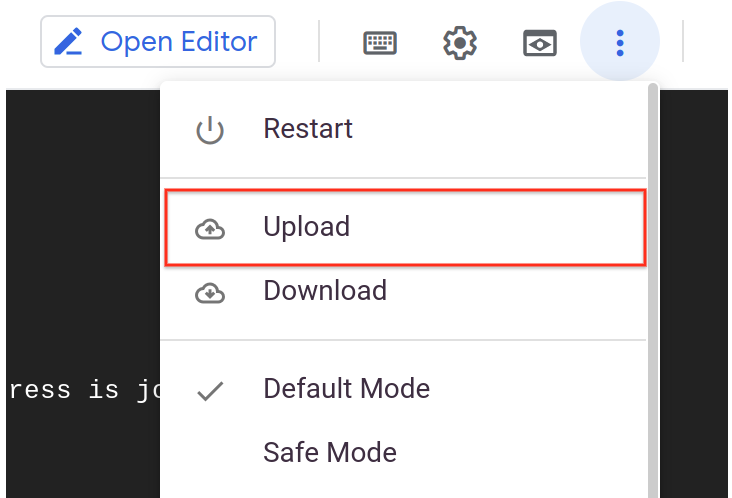

2. In the bar above the terminal, click the button at the top right with three vertical dots and select Upload.

If Upload is not clickable ("grayed out"), then click Restart. After the Cloud Shell environment is restarted, the Upload Link should be active.

Execute these commands commands before starting the next step in the lab.

export GCLOUD_PROJECT=$DEVSHELL_PROJECT_ID

3. Click Choose Files, select the downloaded dlp-input.png image file, and Upload it to Cloud Shell.

4. From Cloud Shell, click Open Editor . This will launch the Cloud Shell code editor, which includes a file browser.

5. In the Cloud Shell code editor, on the left, you should see the dlp-input.png file.

6. Click the dlp-input.png file to display the image and verify it was uploaded.

7. From Cloud Shell, click Open Terminal to return to the terminal window.

8. In the terminal, run the following command to redact the email address values from the image:

node redactImage.js $GCLOUD_PROJECT ~/dlp-input.png "" EMAIL_ADDRESS ~/dlp-redacted.png

9. Open Editor.

10. In the Cloud Shell code editor, on the left, click the dlp-redacted.png file.

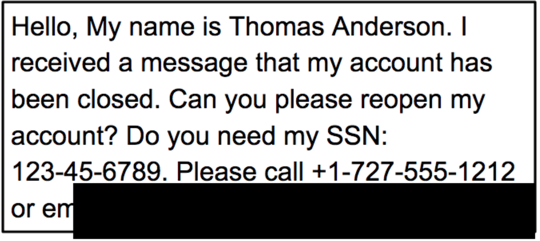

You will see the image with the domain name redacted.

When calling the redact API, you specified EMAIL_ADDRESS as the infotype to redact. In the image, you should notice that the email address is no longer visible.

---
